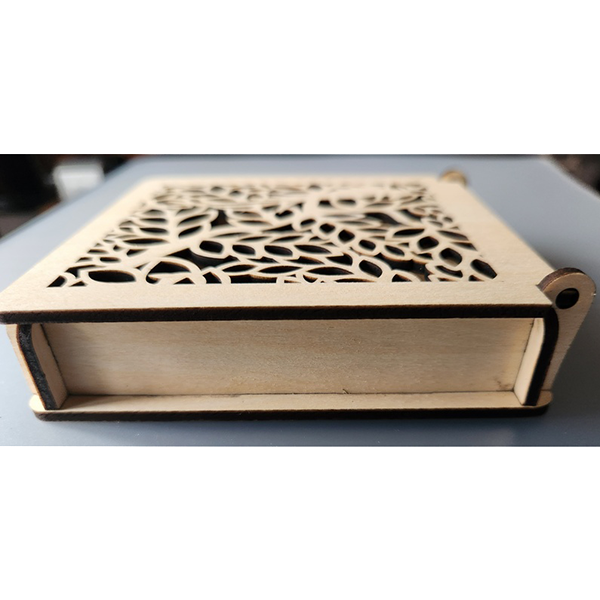

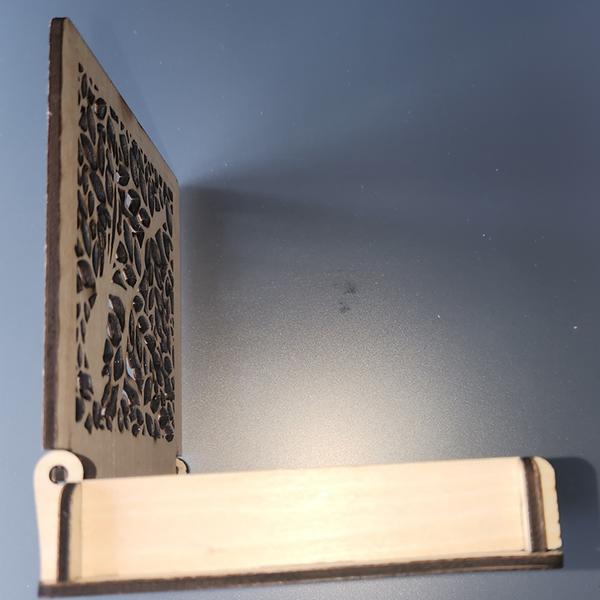

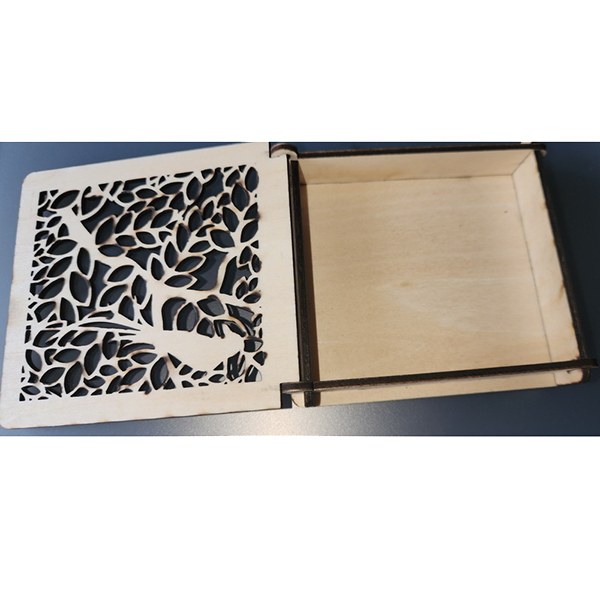

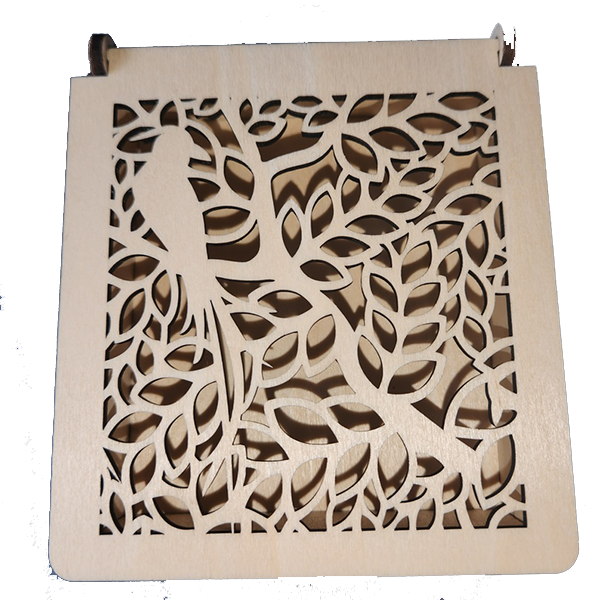

Laser-cut box from 3mm basswood. This box is about 4.3" x 4.1" by 0.8" Unstained. It might be nice with a rich color behind the filigree.
| Style | Speed | Power | Passes |
|---|---|---|---|
| Cut | 3 mm/s | 100% | 2 |
Next time, revisit the image settings. They were too light so I had to do a second pass. Maybe try the line settings. Cheese board from Dollar Tree. Board corners were prepped with hydrogen peroxide.
| Source |  |
Decorative Wooden Gift Box |
|---|---|---|
| Project |  |
FiligreeGiftBox.lbrn2 |

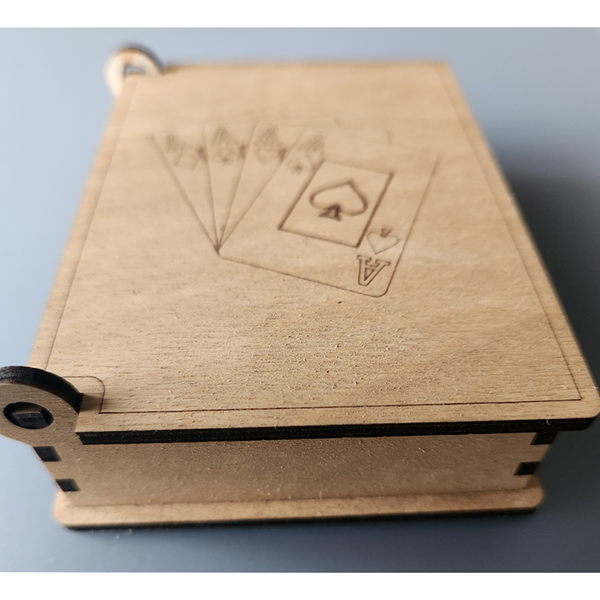

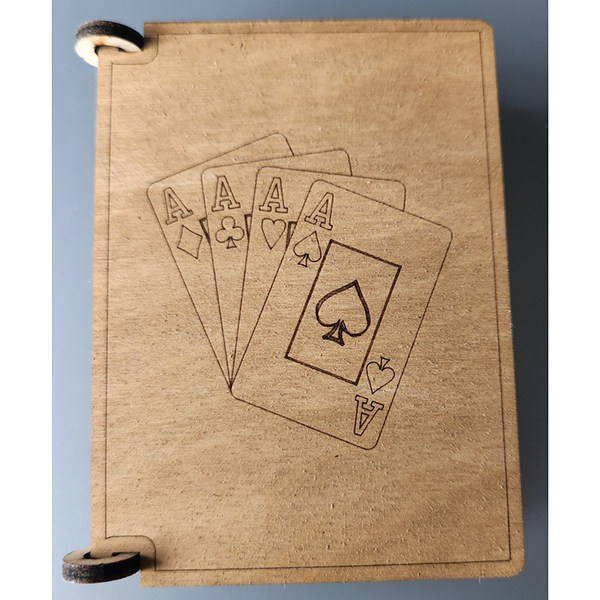

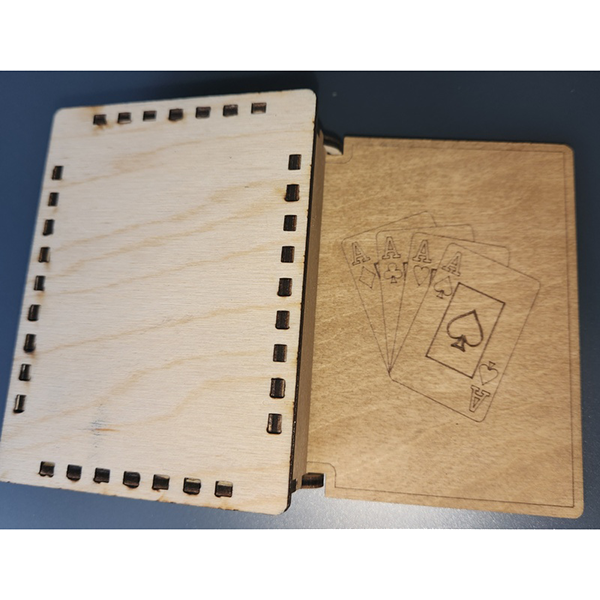

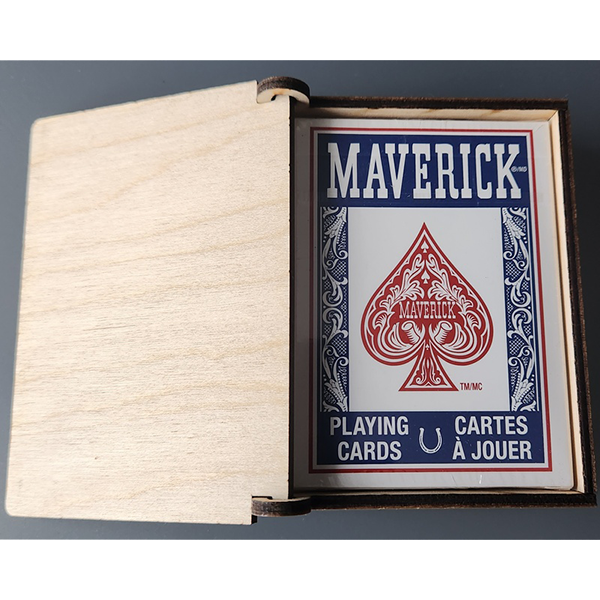

Laser-cut from 3mm basswood. This box holds a standard deck of cards.
| Style | Speed | Power | Passes |
|---|---|---|---|
| Line | 40 mm/s | 45% | 1 |
| Fill | 40 mm/s | 45% | 1 |
| Cut | 3 mm/s | 100% | 2 |
If made again, I would fix some of the graphics on top to fill better.
| Source | |
Wooden Playing Card Box |
|---|---|---|
| Project | |
SingleCardDeckHolder.lbrn2 |

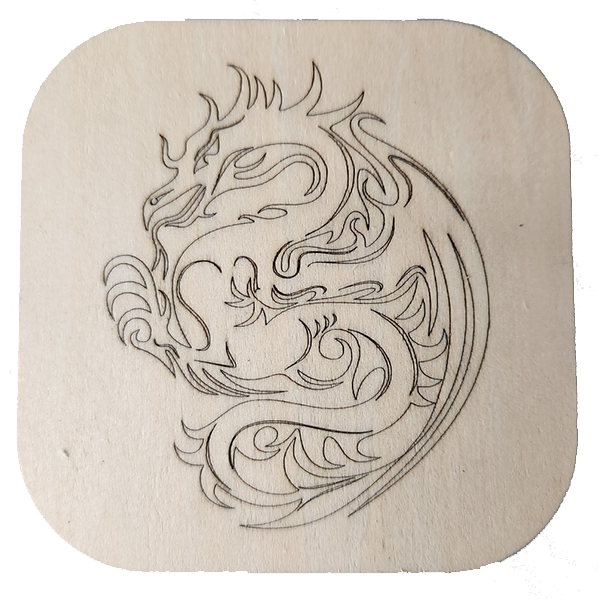

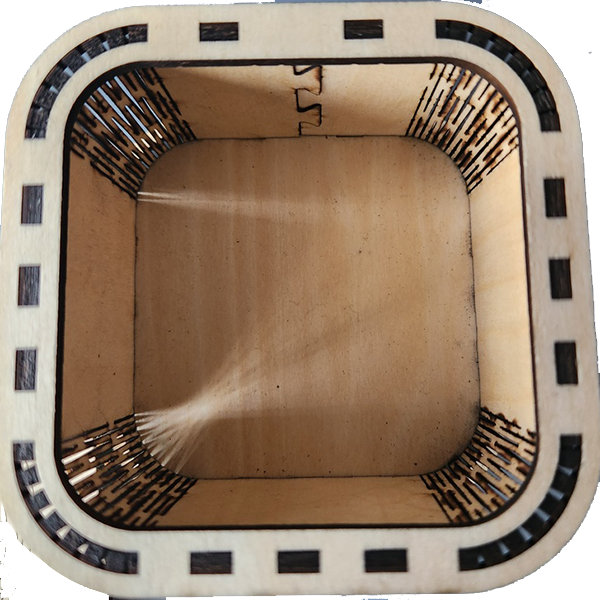

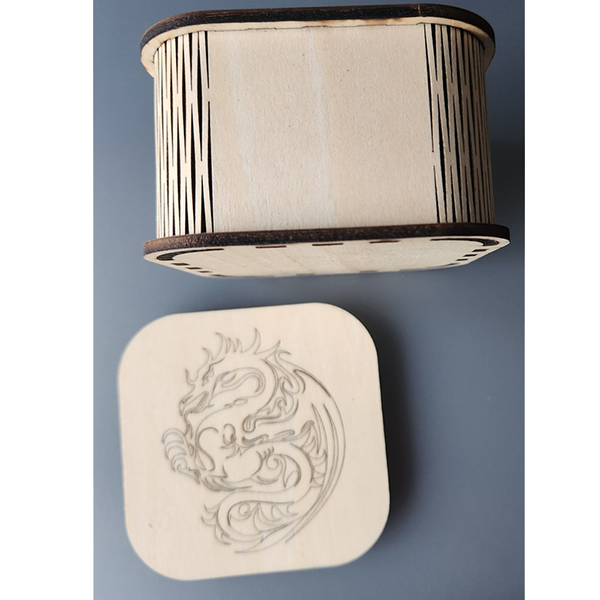

Laser-cut from 3mm basswood. This was my first project with a living edge and this one turned out great. It's unstained and the dragon engraving was a handy graphic for the top. The interior dimensions are approximately 2.5" x 2.5" x 1.75".
| Style | Speed | Power | Passes |
|---|---|---|---|
| Line | 40 mm/s | 45% | 1 |
| Cut | 3 mm/s | 100% | 2 |
If made again, I would fill the dragon for a better graphic. I really like the design of this box and the dragon.
| Source |  |
Rounded Box with custom settings |
|---|---|---|
| Project | |
DragonRoundedBox.lbrn2 |

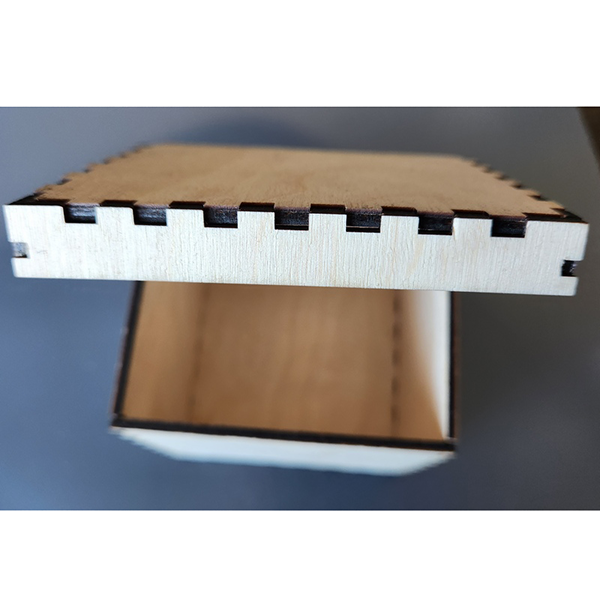

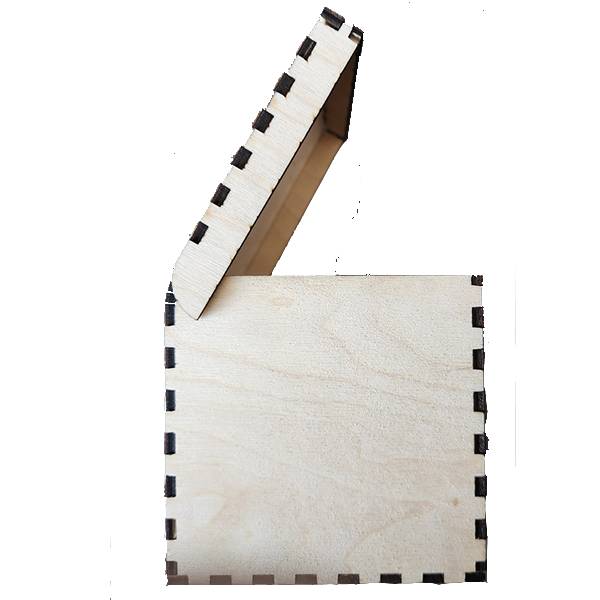

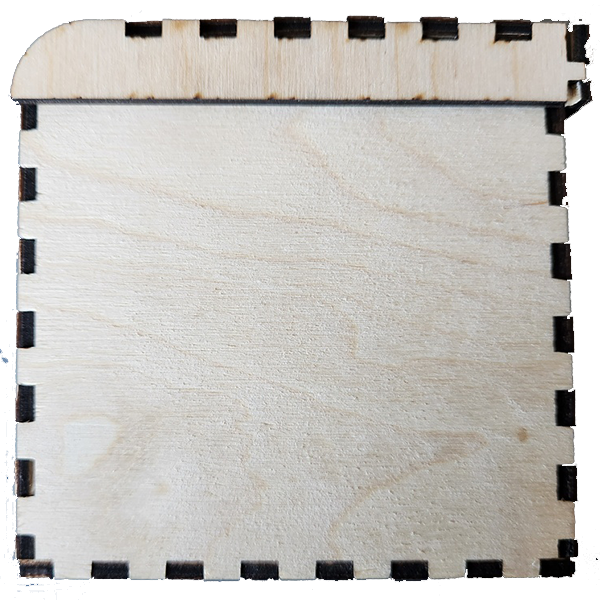

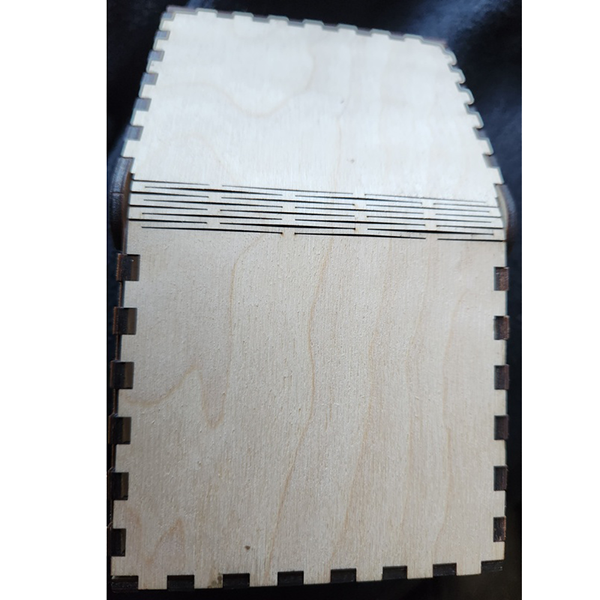

Laser-cut from 3mm basswood. This was a sample box with a live hinged lid.
| Style | Speed | Power | Passes |
|---|---|---|---|
| Cut | 3 mm/s | 100% | 2 |
Tolerances were VERY tight especially on the lid. Trying to put this together was very difficult. Settings need to be relaxed a bit.
| Source | |
FlexBox3 |
|---|---|---|
| Project | |
BoxWithHingedLid.lbrn2 |
